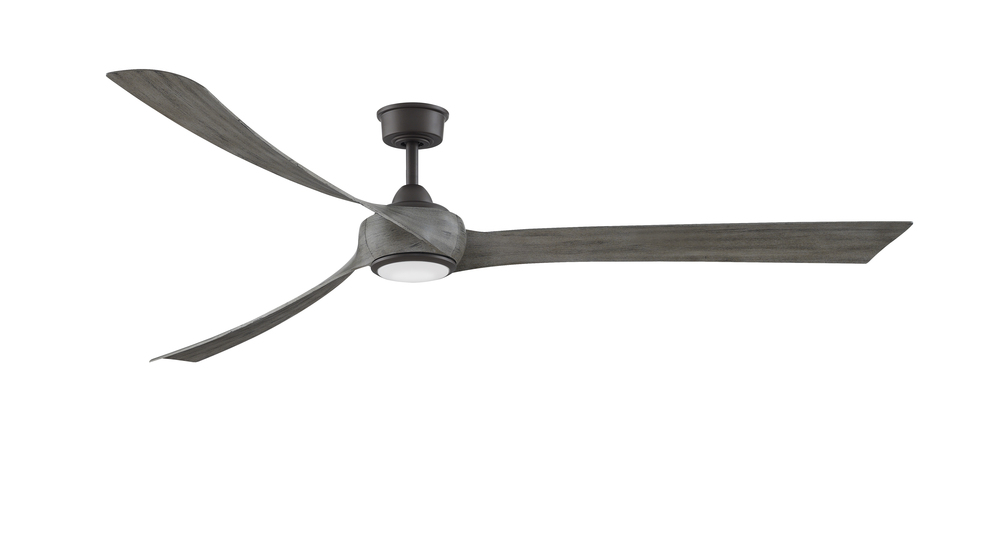

Wrap Custom Motor - GR by Fanimation

374

/ 1

Part Number: MAD8531GR
UPC: 00840506082847
Availability: Item is usually in stock, but we'll be in touch if there's a problem

Quantity:

Add To Cart

Add To Estimate

Add To Wishlist

Compare Item

Product Overview

Info & Guides

Wrap yourself in style with this sophisticated ceiling fan from Fanimation. With many motor and blade finish combinations available, Wrap Custom is a versatile ceiling fan. LED and CCT Select Light kit, blades and motor sold separately. *Damp Rated for indoor or outdoor use *Can be controlled using the Fanimation Bluetooth fanSync app *Reversible airflow for multi-season use

Specifications

Energy Information at High Speed

Airflow:

11206 Cubic Feet per Minute

Electricity Rate:

31 Watts (excluded lights)

Airflow Efficiency:

366 Cubic Feet Per Minute Per Watt

Details

Category:

Fans

Subcategory:

Fan Motor Without Blades

Finish:

Gray /vendors/vendorImages gray.jpg

Miscellaneous /vendors/vendorImages miscellaneous.jpg

Style:

Traditional

Option:

Energy Star /vendors/vendorImages energy star.jpg

Damp Rated

Number of Blades:

3 Blades

Location Rating:

Damp Rated

Category:

Fan-Multi

Finish:

Matte Greige

Option:

Damp

Family:

Wrap Custom

Voltage:

120 V

Additional Info:

10,846 CFM on High

Compatible with most Smart home devices (required controls sold separately)

DC motor with reverse switch, variable speeds, light controls, sleep timer, home away, fresh air and

ENERGY STAR Most Efficient 2020

Set of 3 Damp Rated blades with multiple finish options and 18 watt LED light kit (sold separately)

TR205D handheld remote with CR2032 batteries included

Air Flow CFM:

11206

Air Flow Efficiency:

366

Amperage:

0.43

Blade Pitch:

Varied

Canopy:

6.14 Dia x 2.55 H

Diameter:

8.88

Down Rod Included:

Electricity Used:

Harmonized Codes:

8414.51.3000

Length:

64, 72, 84

Light Kit Included:

Max Length:

Max Width:

Motor Fan Speed:

Motor RPM:

Motor Size:

153 x 25

Motor Type:

Remote Control Included:

TR205D

Ship Carton Height:

7.6

Ship Carton Length:

16.34

Ship Carton Width:

8.86

Ship Weight:

16.1

Sold By:

Each

Warranty:

Limited Lifetime

Weight:

13.3

Airflow Efficiency Low:

1172

Airflow Efficiency Medium:

827

Avg Airflow Efficiency:

420

Avg CFM Energy:

8762

Avg Energy Use Watts:

Avg Estimated Yearly Energy Cost:

Avg Estimated Yearly Energy Cost on HIGH:

Canopy Diameter:

6.14 Dia

Canopy Height:

2.55 H

Cap Included:

Yes

Carton Cubic Feet:

0.64

Cartons Per Unit:

Case Height:

7.6

Case Length:

16.34

Case Quantity:

Case Weight Pounds:

16.1

Case Width:

8.86

CEC Uploaded:

Yes

Ceiling To Blade Edge:

15.33

Ceiling To Bottom:

15.96

16.55

CFM Low:

3516

CFM Medium:

7859

Compatible Accessories:

CCK8002GRW, DR1-12GR, DR1-18GR, DR1-24GR, DR1-36GR, DR1-48GR, DR1-60GR, DR1-72GR, DR1-CPGR, SCB1-52

Compatible Blades:

BPW8531-64BL, BPW8531-64BN, BPW8531-64DWA, BPW8531-64N, BPW8531-64WE, BPW8531-64WW, BPW8531-72BL, BPW8531-72BN, BPW8531-72DWA, BPW8531-72N, BPW8531-72WE, BPW8531-72WW, BPW8531-84BL, BPW8531-84BN, BPW8531-84DWA, BPW8531-84N, BPW8531-84WE, BPW8531-84WW

Compatible Light Kits:

LK8530GR

Compatible Wall Controls:

TW306

Country of Origin:

China

Current Draw High:

0.43

Current Draw Low:

0.05

Current Draw Medium:

0.15

Damp Rated:

Yes

DOE Classification:

LSSD

DOE-FTC Uploaded:

Yes

DOEFTC Uploaded:

Yes

Downrod Length:

Exempt from DOE Procedure:

Fan Energy Star:

Yes

Housing Diameter:

8.88

Included Control:

TR305

Included Control Type:

Handheld

Leadwire:

Max Ceiling Slope:

Max Watt:

Maximum Slope Degree:

Motor Finish Method Type:

Painted

Motor Reversible:

Yes

Number of Blades:

Number Of Speeds:

Regulated Product:

Yes

Reverse Switch Location:

Control

RPM High (VI):

RPM Low (II):

RPM Medium (IV):

RPM Mini I:

Safety Rating:

UL Approved, cUL Approved

Voltage Cycles:

60 hz

Watts Low:

Watts Medium:

Manufactured By:

Fanimation

Other Details

10,846 Cfm On High

Compatible With Most Smart Home Devices (required Controls Sold Separately)

Dc Motor With Reverse Switch, Variable Speeds, Light Controls, Sleep Timer, Home Away, Fresh Air And Safe Exit Features

Energy Star Most Efficient 2022

Set Of (3) Damp Rated Blades With Multiple Finish Options Available And 18 Watt Led Cct Select Light Kit Available (sold Separately)

Tr305 Handheld Remote With 23a Battery Included
