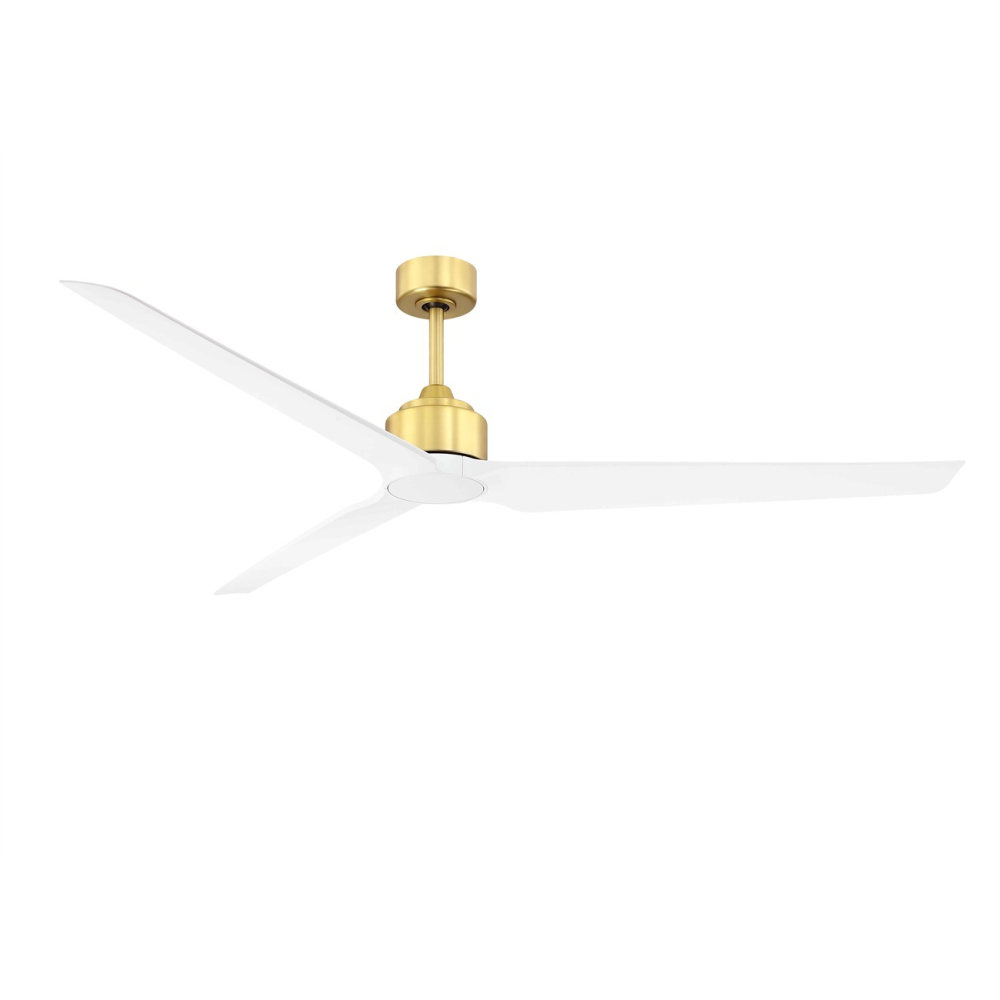

TriAire Custom Indoor/Outdoor Ceiling Fan DC Motor- Brushed Satin Brass

TriAire Custom Indoor/Outdoor Ceiling Fan DC Motor- Brushed Satin Brass by Fanimation

408

/ 1

Part Number: MAD8515BS
UPC: 00840506120587
Availability: Item is usually in stock with manufacturer, but we'll be in touch if there's a problem

Quantity:

Add To Cart

Add To Estimate

Add To Wishlist

Compare Item

Product Variations (4)

Product Overview

Info & Guides

The TriAire Custom by Fanimation fits any style and location. With eight different blade sweeps in multiple finishes, you can create the TriAire Custom that fits your space. This wet rated ceiling fan has a 31 speed DC motor. LED with CCT Select Light kit, blades and motor sold separately. This ceiling fan is wet rated for indoor or outdoor use. It can be controlled using the Fanimation Wi-Fi fanSync application.

Specifications

Details

Category:

Fans

Subcategory:

Ceiling Fans

Finish:

Brass /vendors/vendorImages brass.jpg

Option:

Energy Efficient

Outdoor

Damp Rated

Category:

Fan-Multi

Finish:

Brushed Satin Brass

Option:

Energy Efficient

Outdoor

Family:

TriAire Custom

Voltage:

120 V

Air Flow CFM:

10387

Air Flow Efficiency:

342

Blade Pitch:

Canopy:

5.75 Dia x 2.57 H

Harmonized Codes:

8414.51.3000

Light Kit Included:

Motor Size:

153 x 25

Motor Type:

Ship Carton Height:

8.35

Ship Carton Length:

15.94

Ship Carton Width:

8.86

Ship Weight:

15.08

Sold By:

Each

Warranty:

1 Year

Weight:

13.67

Airflow Efficiency Low:

723

Airflow Efficiency Medium:

757

Avg Airflow Efficiency:

378

Avg CFM Energy:

7827

Avg Energy Use:

Avg Estimated Yearly Energy Cost:

Avg Estimated Yearly Energy Cost on HIGH:

Cap Included:

Yes

Carton Cubic Feet:

0.6824

Case Height:

8.35

Case Length:

15.94

Case Quantity:

Case Weight Pounds:

15.08

Case Width:

8.86

CEC Uploaded:

Yes

Ceiling To Blade Edge:

16.42

Ceiling To Bottom (No Light Kit):

15.92

Ceiling To Bottom (With Light Kit):

18.12

CFM Low:

1734

CFM Medium:

6891

Country of Origin:

China

Current Draw High:

0.43

Current Draw Low:

0.05

Current Draw Medium:

0.14

DOE Classification:

LSSD

DOE-FTC Uploaded:

Yes

Downrod Length:

Energy Efficient:

Yes

Exempt from DOE Procedure:

Fan Energy Star 4:

Housing Diameter:

7.09

Included Control:

TR305

Included Control Type:

Handheld

Indoor:

Yes

Leadwire:

Location Rating:

Damp Rated

Max Ceiling Slope:

Max Length:

Max Width:

Motor Finish Method Type:

Plated

Motor Reversible:

Yes

Number of Blades:

Number Of Speeds:

Outdoor:

Yes

Regulated Product:

Yes

Reverse Switch Location:

Control

RPM High:

100

RPM Low:

RPM Medium:

Safety Rating:

UL Approved, cUL Approved

Voltage Cycles:

60 Hz

Watts High:

Watts Low:

Watts Medium:

Manufactured By:

Fanimation

Other Details

CONTROL: Includes a Wi-Fi receiver and TR305 handheld remote with two 3V CR2032 batteries

FINISH: Brushed Satin Brass

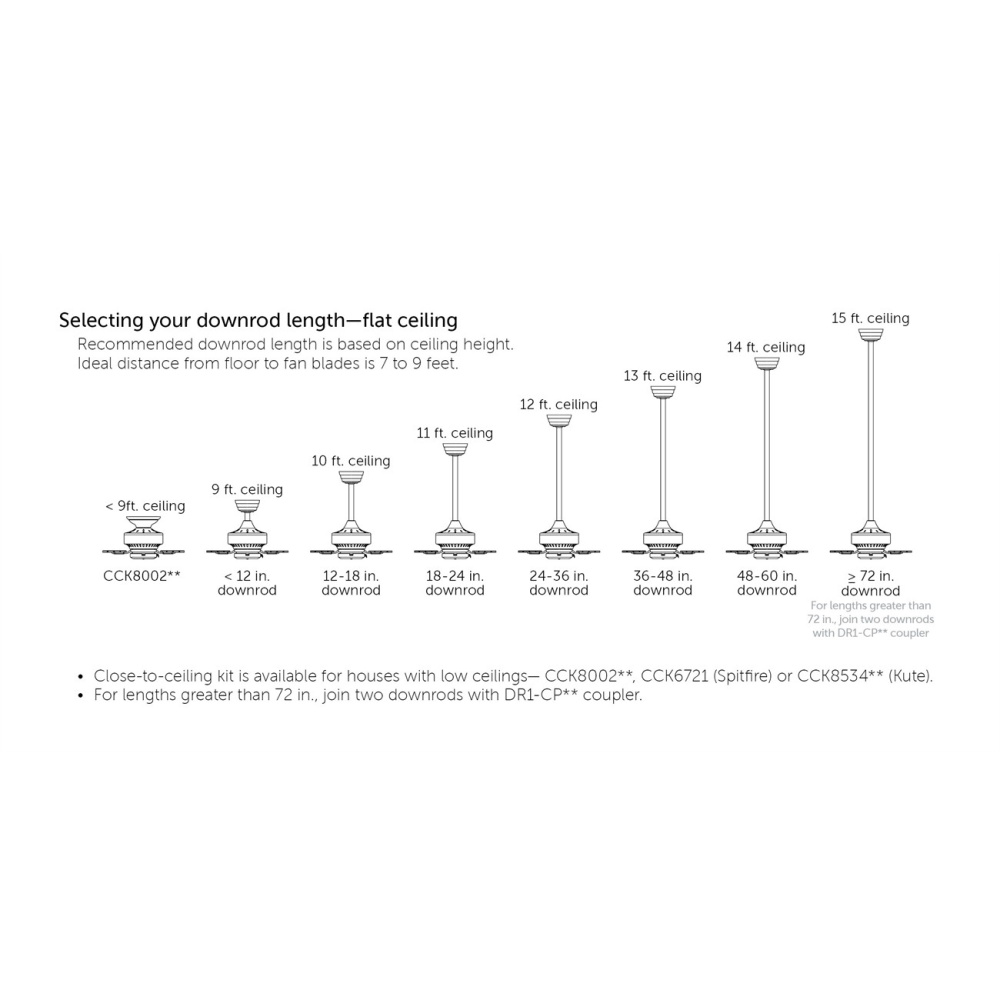

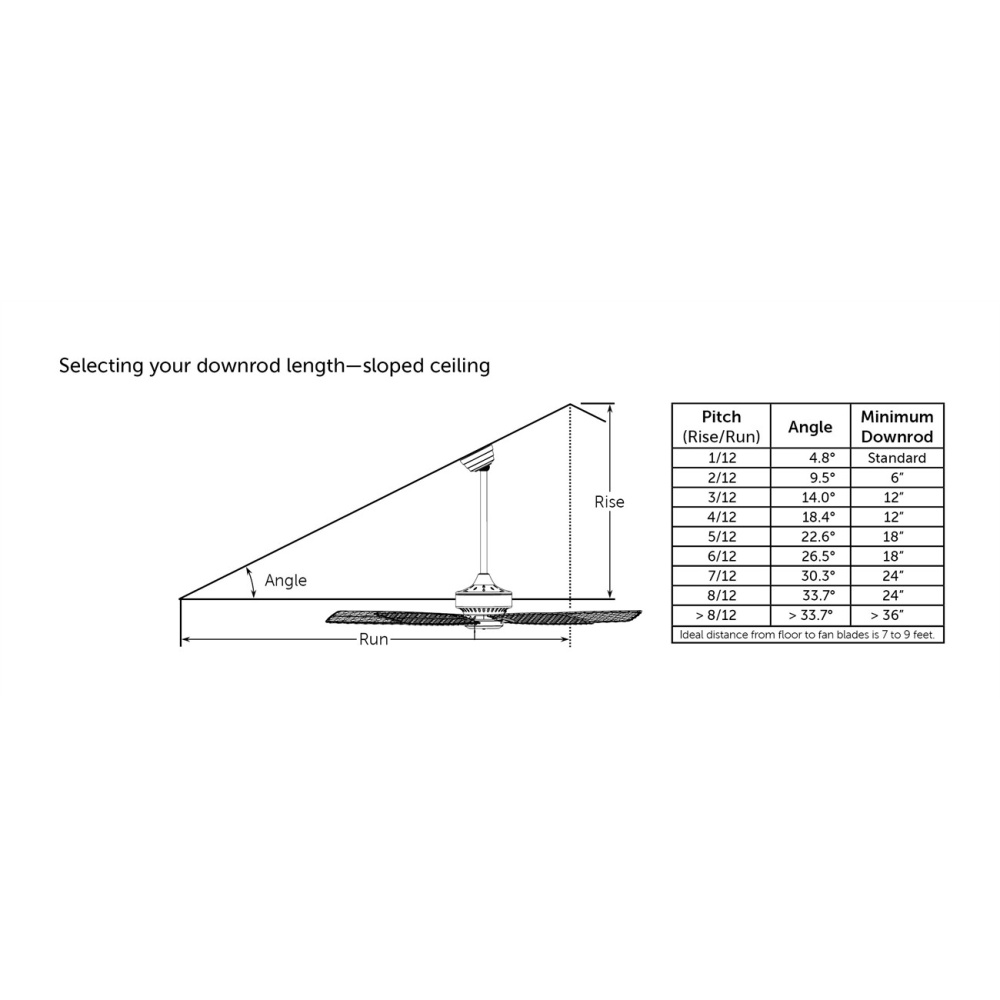

INSTALLATION: Mounts to flat or minimally sloped ceilings with the included 1-in diameter x 8-in length downrod - optional downrods are available in lengths up to 72 inches to adjust the fans height to 7ft - 9ft from the floor, ensuring maximum airflow

LIGHTING: 18-Watt dimmable LED light kit with Correlated Color Temperature (CCT) Select technology and opal frosted glass available for added versatility (light kit sold separately)

LOCATION: This ceiling fan is Wet Rated for use in indoor and outdoor spaces, making it ideal for any indoor room or spaces like gazebos, patios, pergolas, or porches

POWER: The 16-speed, quiet and energy efficient DC motor can provide airflow up to 10,387 CFM

Push buttons control 16 variable fan speeds, infinite light levels, color temperature, fan/light timer, powering on/off, and fresh air, reverse, home away, safe exit modes

SAVINGS: Features a reversible motor, allowing you to switch the direction of your fan's rotation and create energy savings

TECHNOLOGY: Includes fanSync Wi-Fi connectivity, allowing the fan to pair with most smart home devices

WARRANTY: Limited lifetime
